This article describes the work done at the National Institute of Research & Development for Technical Physics
in Iaşi, Romania between March 2014 to March 2015.


Surface Plasmon and »radiative« Surface Waves for the NANO to Terahertz Region

1. Preamble
2. Abstract
3. Surface Plasmon and Dispersion Relation
4. Exitation of Surface Plasmon using »Total Reflection« in Prism - Kretschmann Configuration
5. Coupling to Surface Plasmon using a Grating
6. Screen Mode Waves and Surface Plasmon at long wavelengths
7. Conclusion
8. References

Preamble


This article summarises the theoretical background for a project called:

Development of Surface Wave methods to study the resonances of molecules. Extension of Surface Wave methods to frequencies from Near Infrared to Terahertz region

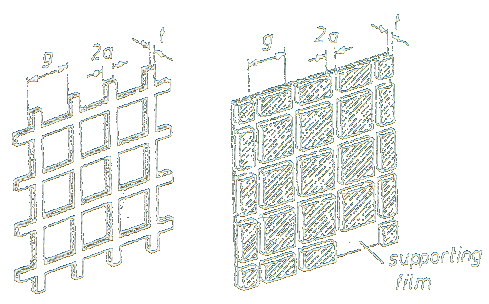

Figure 1: Inductive (left) and capacitive (right) meshes after R.Ulrich [1]
The basic theory and design of inductive screens for the NANO and Short and Mid Infrared region are presented here. An introduction on Surface Plasmons can be found on this webpage:
Programs to do CST simulations were not available at NIRDTP in Iaşi, they were done by K. P. Stewart at NRL (U.S. Naval Research Laboratory), Washington DC.

Proposed work:
  1. About 2 to 4 Screens should be made for the Short and Mid Infrared. Then a Surface Wave Method is available for research to use Surface Plasmon at frequencies in Short and Mid Infrared, and Screen Mode Waves in the entire spectral region from NANO to Terahertz frequencies.
  2. Capacitive screens for reflection measurements in particular for liquids.

Abstract

Square shaped periodic metal screens may be used to excite »non radiative« surface plasmons in the spectral region of near and mid infrared. »Radiative« Surface Waves may be excited as resonance modes of metal screens in the total spectral region from visible to Terahertz region, including the frequency range of characteristic vibrations of molecules.

Surface Plasmon and Dispersion Relation


  1. Coordinates and Sample position
    A Surface Plasmon Polariton should propagate on the interface of dielectric and metal. There will be evanescent waves in both media, and samples may be position in the area of the dielectric.

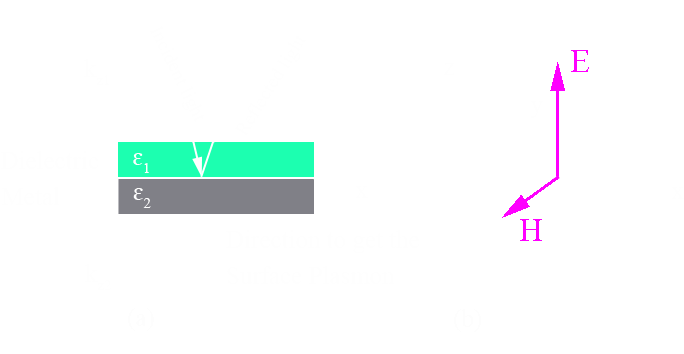

    Figure 2: (a) Incident and reflected light. Surface plasmon should be excited at the interface dielectric-metal. (b). Coordinate system (x,y,z) and electric and magnetic vectors.

  2. Dispersion Relations of Surface Plasmon.
    Starting with a plane wave solution,

    E   =   E0 ⋅ e (kx x + kz  z -w t)       (Eq.: 1)


    one gets from Maxwell's equations and continuity equations a solution of a wave traveling at the interface in x direction

    kx2+kz12   =   e1(w/c)2     and     kx2+kz22   =   e2(w/c)2


    From these equations one gets the dispersion relation:

    ksp   =   (w/c) ⋅ [(e1e2)/(e1+e2)]½     (Eq.: 2)


    w is resonance frequency if Surface Plasmon, e1 is positive, e2 is negative.



  3. Surface Plasmon and Photon.
    The k vector of incident light has the wave vector of a photon, that is k = (w/c) ⋅ e1½.
    Figure 3: Evanescent waves in z direction at the metal-dielectric interface.
    The wave vector of a surface plasmon can be written as, ksp = (w/c) ⋅ e1½ ⋅ [e2/(e1+e2)]½. Since e2 must be negative, one uses metals. Surface Plasmon ksp is always larger than k of photon of incident light, on account that [e2(e1+e2)]½ is always larger than 1 for large and negative e2.
    In w verse k plots, the surface plasmon is always to the right of the »light line«. As a consequence, a surface plasmon can not be excited from air, that is using e1 = 1.
    Since e1 and e2 have in general complex values, ksp will be complex and as result has a damping factor for propagation. Solution in z direction are evanescent waves, proportional to e i kx z. A Surface Plasmon is a »non radiative« wave, always related to evanescent waves in attached materials, while an incident wave is a »radiative« Photons wave, existing in free space.


Exitation of Surface Plasmon using »Total Reflection« in Prism - Kretschmann Configuration


  1. Prism and Evanescent Wave.
    We look at a prism and make the angle of incidence so large that we get »total internal Reflection« on the base of the prism.

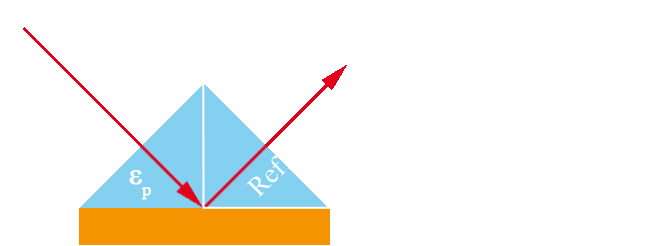

    Figure 4: Prism for Kretschmann Configuration.

    The k vektors are:

    Incident light in air: k = w/c
    Component in direction of base line of prism: ka = w/c ⋅ sin q
    Component in direction of base line of prism, but inside the prism: kp = w/c ⋅ sin qÖep

    We now attach a very small metal film (200nm) to the prism base with contact to the dielectric. The evanescent wave of the prism penetrates the metal film and a surface Plasmon is excited on the metal-dielectric interface.

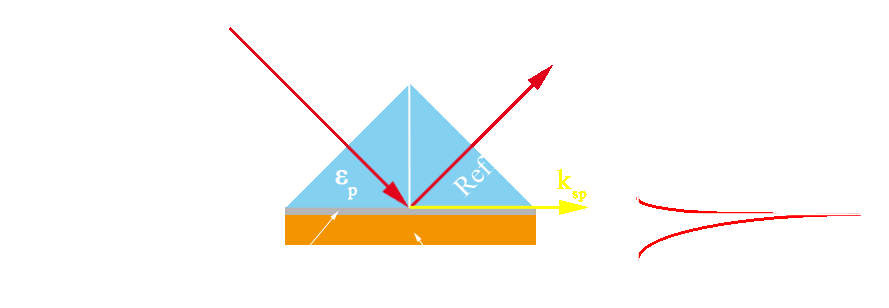

    Figure 5: Surface Plasmon and Prism for Kretschmann Configuration.

  2. Matching conditions.

    We have for the Surface Plasmon (see Eq.: 2):

    ksp   =   (w/c) ⋅ [(epem)/(ep+em)]½


    and for the evanescent wave of the prism kp = w/c ⋅ sin qÖep, where ep is the dielectric constant of the prism and em of the metal film (gray).

    For matching we need:

    kp = wi/c ⋅ sin qÖep   should be equal to   ksp = (wsp/c) ⋅ [(epem)/(ep+em)]½


    By the right chioce of w and for »small tuning« by changing q, one gets

    kp   =   ksp     (Eq.: 3)



    When that is done, we have used in this procedure a »radiative« wave ( incident) to excite a »non radiative« Surface Plasmon.



Coupling to Surface Plasmon using a Grating


  1. The prism was used to produce an evanescent wave in direction x of interface for excitement of Surface Plasmon.
    Instead of a prism, a grating may be used. In Fig.6 a reflection grating is shown. When the periodicity constant is g, the reciprocal lattice vector is q(2p/g) with q equal +/- integer, presenting the periodicity in frequency space.

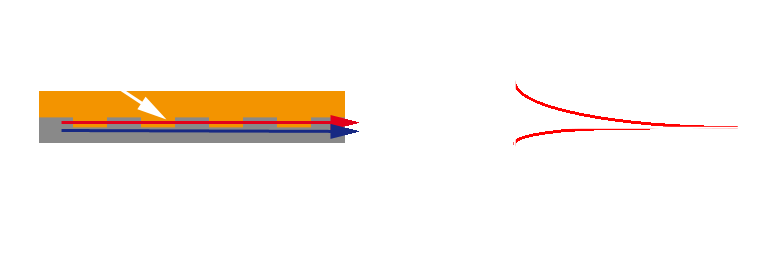

    Figure 6: (a) Dielectric layer with reflection grating structure. Grating mode (red), Surface Plasmon (blue).
    (b) Evanescent waves at dielectric-metal interface.

  2. Matching

    If kin = w/c one has for the projection on grating kg = w/c ⋅ sin q Ö ed+ q(2p/g).
    To excite a surface plasmon we have to match kg with surface plasmon ksp:

    kg = w/c ⋅ sin q Ö ed+ q(2p/g)   should be equal to   ksp = (wsp/c) ⋅ [(edem)/(ed+em)]½


    When ed and em are given one chooses (wi/c) and g, and q for »fine tuning«, such that one has

    kg   =   ksp     (Eq.: 4)


  3. Observation.

    We consider a surface Plasmon propagating on an interface dielectric ed-Metal as shown in Fig.7.

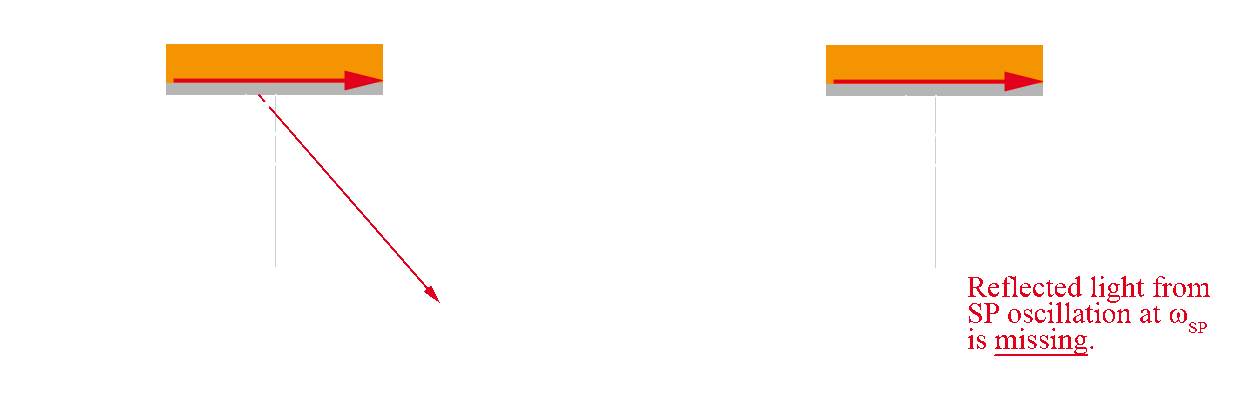

    Figure 7: (a) Observation of dielectric constant of sample. (b) Observation of absorption at particular resonance frequency wsp.

    1. Change of Dielectric constant
      In Fig.7 (a). Light of frequency w is incident at angle q, and for one specific set w and q, the surface Plasmon is excited on account that

      k = w/c ⋅ sin q Ö ed   should be equal to   ksp = (wsp/c) ⋅ [(edem)/(ed+em)]½


      We may consider k(w,q) and ksp(w) in an w versus k graph for fixed q. When ep, ed, and em are given, we get w of surface plasmon when k(w,q) is equal ksp(w).
      A change in q, corresponding to a different ed, will show up at different wsp in the reflected light at the detector, and from the difference a change of dielectric constant can be determined.



    2. Resonance Absorption
      We assume, by changing q, that Surface Plasmon resonance is set at wsp. When one has a sample with resonance at that frequency, we have resonance interaction. At the reflected light, frequency of light corresponding to Surface Plasmon is missing, indicating resonance absorption at that frequency.


Screen Mode Waves and Surface Plasmon at long wavelengths.


  1. Surface Plasmon are »non radiative« waves, used in wavelength range of NANO region and with grating coupling into the near infrared.
    When looking at much longer wavelength, from 15 Microns to Terahertz region, one finds that the dispersion relation of Surface Plasmon has about same value as dispersion relation of surface wave of periodic metal structure, e.g. a square shaped metal screen. We use the same 1-dimensional presentation as we did for coupling with grating and have then for a Periodic Metal Screen:

    kg = w/c ⋅ sin q + q(2p/g)   and that is almost equal to   ksp = (wsp/c) ⋅ [(edem)/(ed+em)]½,


    of Surface Plasmon for ed = 1 and em of the order of 102 to 104 and q = 90°.

    Surface plasmon are not excited in this spectral region. The surface wave is the resonance mode of the periodic metal structures, and is excited by incident light. Electrical field of incident wave induces periodic electrical fields at metal structure, using »free electrons« in metal sections for conductivity.
    These Screen Mode Waves are »radiative waves«, they exists in free space. Inductive screens are metal plates with holes and are used in transmission. Inverse structure, called capacitive screens, are used in reflection (Fig. 1). When there are no losses, sum of intensity of transmitted and reflected light is equal to intensity of incident light.


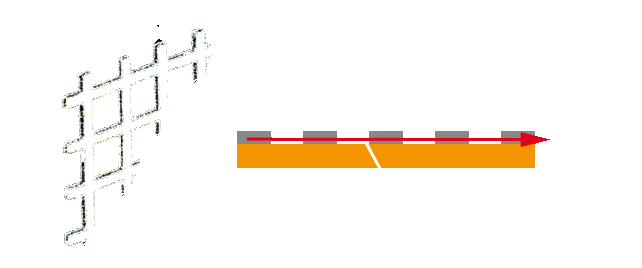

    Figure 8: Square shaped inductive metal screen. Periodicity constant g, length of opening L, thickness t. Optical set-up for transmission, sample layer (orange) may be attached to screen or at separate position.

  2. Surface Wave Modes at long wavelengths region, Bragg Condition
    The mode of periodic metal screen will consist of superposition of wave (k1) traveling in one direction and superimposed of the same wave (k2) traveling in opposite direction. A mode is generated by Bragg scattering, and one has for Bragg condition

    k1 - (-k2) = G   where G is the reciprocal Lattice vector equal   q(2p/g)


    For the wavelength of the mode or standing wave one has

    2(2p/lres) = q(2p/g)   equal for   q = 1 to 2/lres = 1/g   or   lres = 2g


    Square shaped metal screens, thickness 3-5 Microns, in the spectral region from 15 to 1000 Microns, have for their resonance wavelength the empirical formula

    lres   =   0.75g + 0.5L     (Eq.: 5)


    where g is periodicity constant and L length of opening. This kind of screens are commercially available.


  3. Observation
    Resonance Wavelength of Screen Mode Wave depends on dielectric constant of attached layers, and one may find as well resonance absorption.

    1. Dielectric constant It has been shown that the resonance wavelength of screens with dielectric layers on both sides, lres,d, is related to resonance wavelength in air, lres:

      lres,d   =   lres[(e1 + e2)/2]½


      where e1 and e2 are dielectric constants of dielectric layers on front and backside of screen.

    2. Resonance Absorption
      When using square shaped periodic metal screens one has for transmission spectrum a broad bell shaped curve, see Fig.9. The small peaks at top are »artifacts« related to incoherent incident light of the spectrometer. There is a range of resonance wavelength at top of transmission curve, useful for the detection of a number of separate sample resonances within a range of around 20% of top frequency.


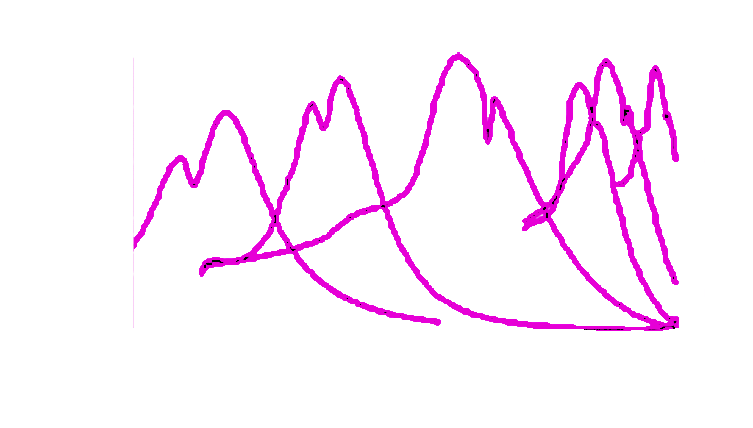

      Figure 9: Transmittance Spectrum of set of square shaped metal screens with 2000 to 200 lines per inch. .

Conclusion

Square shaped periodic metal screens may be used to excite »non radiative« surface plasmon in spectral region of Near and Mid Infrared. Square shaped periodic metal screens may be used to excite »radiative« Resonance Screen Mode Waves in total spectral region from visible to Terahertz Region, including the frequencies of characteristic vibrations of molecules in the infrared spectral region.
